TAVINOX® PRESS — O-rings

TAVINOX PRESS FKM O-ring

OK0110 variants — 10 in stock

The FKM (FPM) O-ring (TAVINOX PRESS) is a seal for applications with higher demands on temperature resistance, chemical stability and resistance to oils, fuels and technical media. Long-term temperature resistance −20 °C to +160 °C, short-term up to +200 °C.

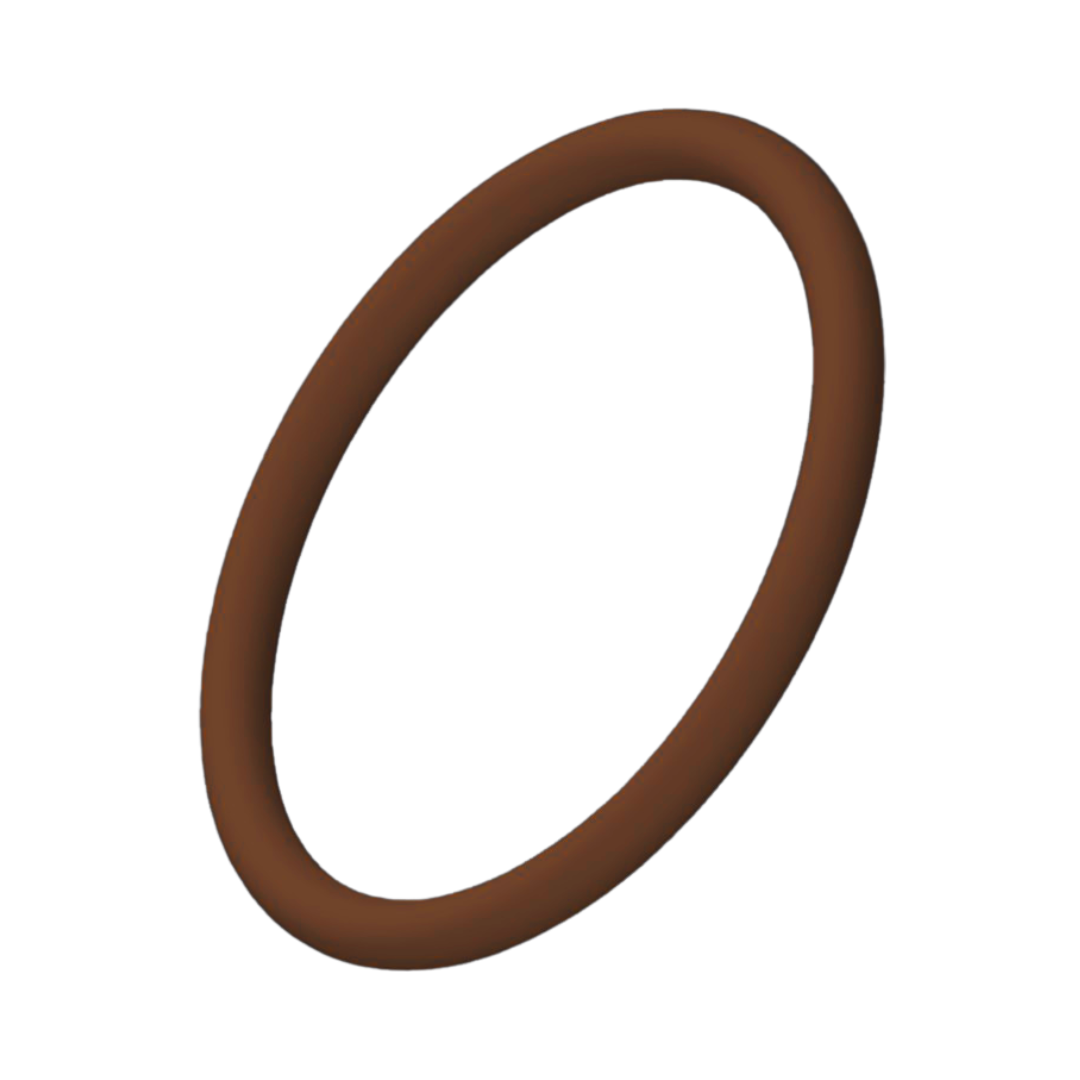

    OK01 TAVINOX PRESS FKM O-ring

    Product

    Technical parameters

    CodeDimensionEANBag (pcs)Box (pcs)
    OK01.1515 mm859668301145410100
    OK01.1818 mm859668301148510100
    OK01.2222 mm859668301151510100
    OK01.2828 mm859668301154610100
    OK01.3535 mm859668301157710100
    OK01.4242 mm85966830116071050
    OK01.5454 mm85966830116381050
    OK01.7676,1 mm8596683011669110
    OK01.8888,9 mm8596683011690110
    OK01.108108 mm859668301172015

    Stock availability and price list

    • OK01.15

      15 mm

      14 CZK

      In stockEAN 8596683011454Weight 0,0006 kg
    • OK01.18

      18 mm

      15 CZK

      In stockEAN 8596683011485Weight 0,0007 kg
    • OK01.22

      22 mm

      24 CZK

      In stockEAN 8596683011515Weight 0,0014 kg
    • OK01.28

      28 mm

      29 CZK

      In stockEAN 8596683011546Weight 0,0017 kg
    • OK01.35

      35 mm

      39 CZK

      In stockEAN 8596683011577Weight 0,0019 kg
    • OK01.42

      42 mm

      71 CZK

      In stockEAN 8596683011607Weight 0,0039 kg
    • OK01.54

      54 mm

      91 CZK

      In stockEAN 8596683011638Weight 0,0049 kg
    • OK01.76

      76,1 mm

      244 CZK

      In stockEAN 8596683011669Weight 0,0225 kg
    • OK01.88

      88,9 mm

      322 CZK

      In stockEAN 8596683011690Weight 0,0326 kg
    • OK01.108

      108 mm

      460 CZK

      In stockEAN 8596683011720Weight 0,0558 kg

    All prices are exclusive of VAT.

    Datasheets for download

    Certificates and approvals

    ITC certificate

    Institute for Testing and Certification, Zlín

    ISO 9001 / ISO 14001

    Management system of the importer CZECH STYLE, spol. s r.o.

    Technical parameters and facts

    The FKM O-ring is made from FKM (FPM, fluoroelastomer), colour brown. The FKM O-ring is a sealing element for applications with higher demands on temperature resistance, chemical stability and resistance to oils, fuels and technical media. It is suitable for systems that require reliable leak-tightness even under increased thermal and operating loads. The long-term operating temperature range is −20 °C to +160 °C. Short-term temperature resistance: +200 °C / max. 5 min. The material offers: high temperature resistance, very good resistance to oils and lubricants, good resistance to fuels, good ageing resistance, good chemical stability and suitability for more demanding operating conditions. The FKM O-ring is suitable for hot water pipework, heating systems, solar thermal systems, industrial pipework, pipework for technical fluids, applications with a higher thermal load and applications involving contact with oils and lubricants. It is not intended for applications outside the verified chemical compatibility of the medium, applications requiring a seal with a special indicating function and operation outside the recommended temperature and pressure conditions of the system. The ITC, ASTM D2000 and CCZ certifications cover use in the Czech Republic, Slovakia, Austria, Germany and Poland.

    Frequently Asked Questions

    What is the FKM O-ring?

    The FKM O-ring is a sealing element for applications with higher demands on temperature resistance, chemical stability and resistance to oils, fuels and technical media. It is suitable for systems that require reliable leak-tightness even under increased thermal and operating loads.

    What is the temperature range of the FKM O-ring?

    The long-term operating temperature range of the FKM O-ring is −20 °C to +160 °C. For short periods it withstands +200 °C / max. 5 min. These figures are based on the laboratory testing and material properties of the FKM compound and serve as technical guidance.

    What material is the FKM O-ring made from?

    The FKM O-ring is made from FKM (FPM, fluoroelastomer), colour brown. Material properties: high temperature resistance, very good resistance to oils and lubricants, good resistance to fuels, good ageing resistance, good chemical stability and suitability for more demanding operating conditions.

    Which applications is the FKM O-ring suitable for?

    The FKM O-ring is suitable for: hot water pipework, heating systems, solar thermal systems, industrial pipework, pipework for technical fluids, applications with a higher thermal load and applications involving contact with oils and lubricants.

    Which applications is the FKM O-ring NOT suitable for?

    The FKM O-ring is not intended for: applications outside the verified chemical compatibility of the medium, applications requiring a seal with a special indicating function and operation outside the recommended temperature and pressure conditions of the system. The sealing material must always be chosen with regard to the specific operating conditions (medium, temperature, pressure, joint design).

    What certifications does the FKM O-ring have?

    The FKM O-ring holds the following certifications: ITC, ASTM D2000, ISO and CCZ. The certifications cover use in the Czech Republic, Slovakia, Austria, Germany and Poland.
